Print Transfers Up To 14.5” Wide
with print resolutions up to 720 x 3600 dpi!

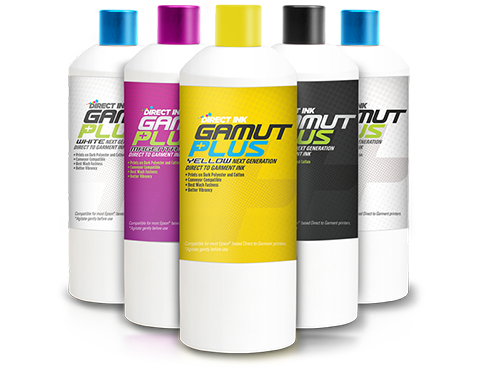

Specially formulated Gamut Plus Inks
Save ink with our bulk ink system
The OmniDTF Printer features High Capacity Ink Bottles! - 250 ml capacity for each color and 500 ml for white ink.
One-pass Technology
One-Pass allows dark garments to be fully completed without the need to return to do the cmyk layer. The white print heads and color heads are tuned to work together to print the base and colors at the same time so that each garment being printed is finished in one pass.
Dryer Included - Automatically applies adhesive, shakes and cures
Quickly and easily cure your transfers with the included dryer. Evenly heat and distribute adhesive powder to your transfers.
Dual print heads
Dual print heads make printing your transfers quick without compromising print quality!
WURK™ Enabled
Automated Pick, Print, & Ship
The OmniDTF is compatible with Wurk™ - a comprehensive web based production management solution that enables a truly automated garment printing process from picking blanks to shipping a complete order. Wurkflow Re-imagined™
Technical Specifications

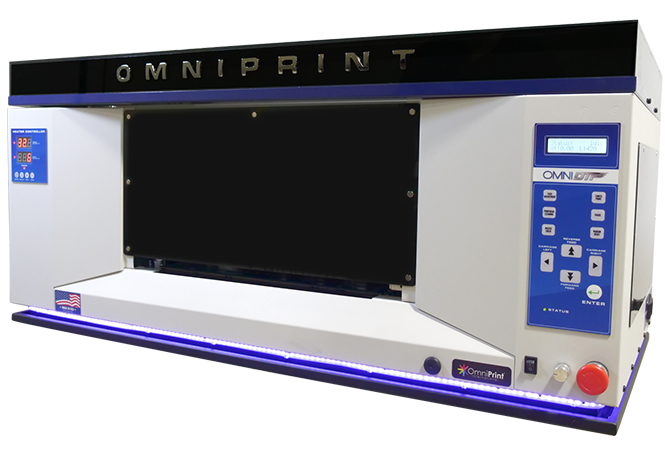

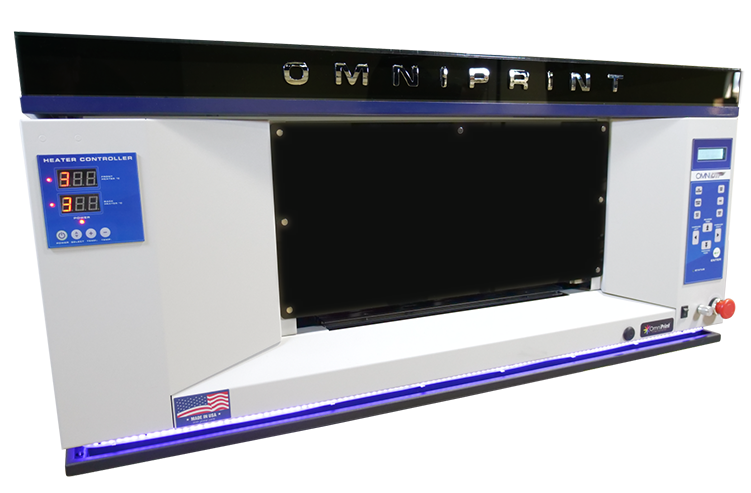

| Model | OmniDTF | ||
|---|---|---|---|
| Numbers of Print Head | (2) i3200- (Precision Core Technology) | ||
| Color Configuration | Yellow, Magenta, Cyan, Black, and White | ||
| Printing Resolution(dpi) | 720x1800, 720x2400, 720x3600 | ||
| Printing Mode | Uni/Bi-directional with One pass printing (white and color in the same layer) | ||
| Ink type | Water-based pigment ink - Gamut- Omni DTF inks | ||
| Printing Size | Up to 14.5 in wide X 238 ft continuously | ||
| Interface | Ethernet | ||
| Weight | 150 Lbs. approx. | ||
| Dimension | L: 42 in. x W: 20in x H: 19in | ||
| Roll Mount | Included | ||
| Voltage/Power | 110~220V. 55/Hz | ||
| Operating system | PC / Windows 10 -64bit | ||
| Environment | Temp: 10 ~ 35 Cº (50 ~ 95 Fº) Humidity: 20 ~ 80 (No condensation) | ||
